Stevens Center

Circuit Plot & Repertory Lighting Plot

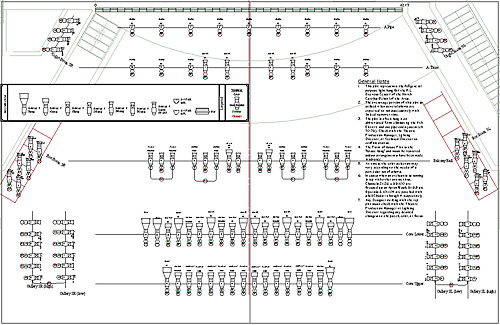

Front of House Cove, Balcony Rail, Gallery Rails, Box Booms, Organ Bay and Apron Pipe & Truss

Prints on two pages

image 1

Windows: Right Click on image to download PDF file
Mac OS: Control Click on image to download PDF file

Download Front of House and Over Stage Plot VectorWorks versions for VW 11.5 or earlier here:

VECTORWORKS Files VW 11.5 OR EARLIER

Download Front of House and Over Stage Plot VectorWorks versions for VW 2008 here:

VECTORWORKS FILES VW 2008

Stevens Center Repertory Plot for

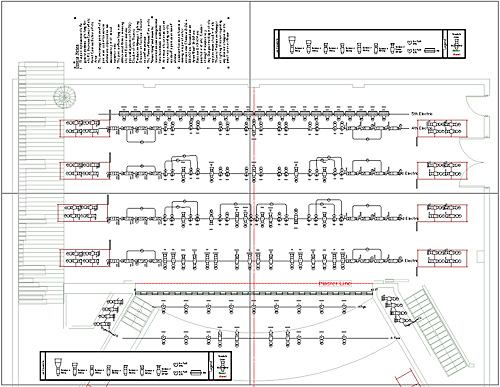

Over Stage House Electrics, SR & SL Ladders and Apron Pipe & Truss with General Notes for hanging details

Prints on four pages

rep

Windows: Right Click on image to download PDF file
Mac OS: Control Click on image to download PDF file

Download Front of House and Over Stage Plot VectorWorks versions for VW 11.5 or earlier here:

VECTORWORKS FILES VW 11.5 OR EARLIER

Download Front of House and Over Stage Plot VectorWorks versions for VW 2008 here:

VECTORWORKS FILES VW 2008

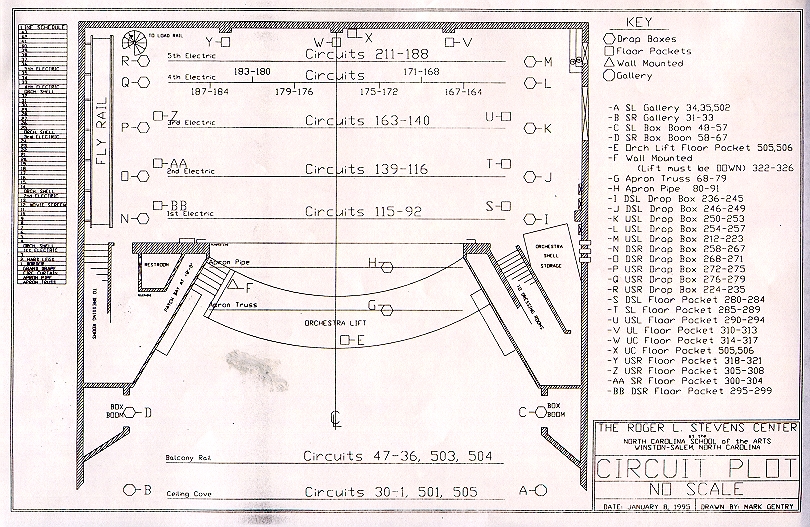

Circuit Plot

circuit
